73-87 C10 ONLY WELD ON CANTILEVER 4 LINK W/ WATTS LINK & STEP NOTCH

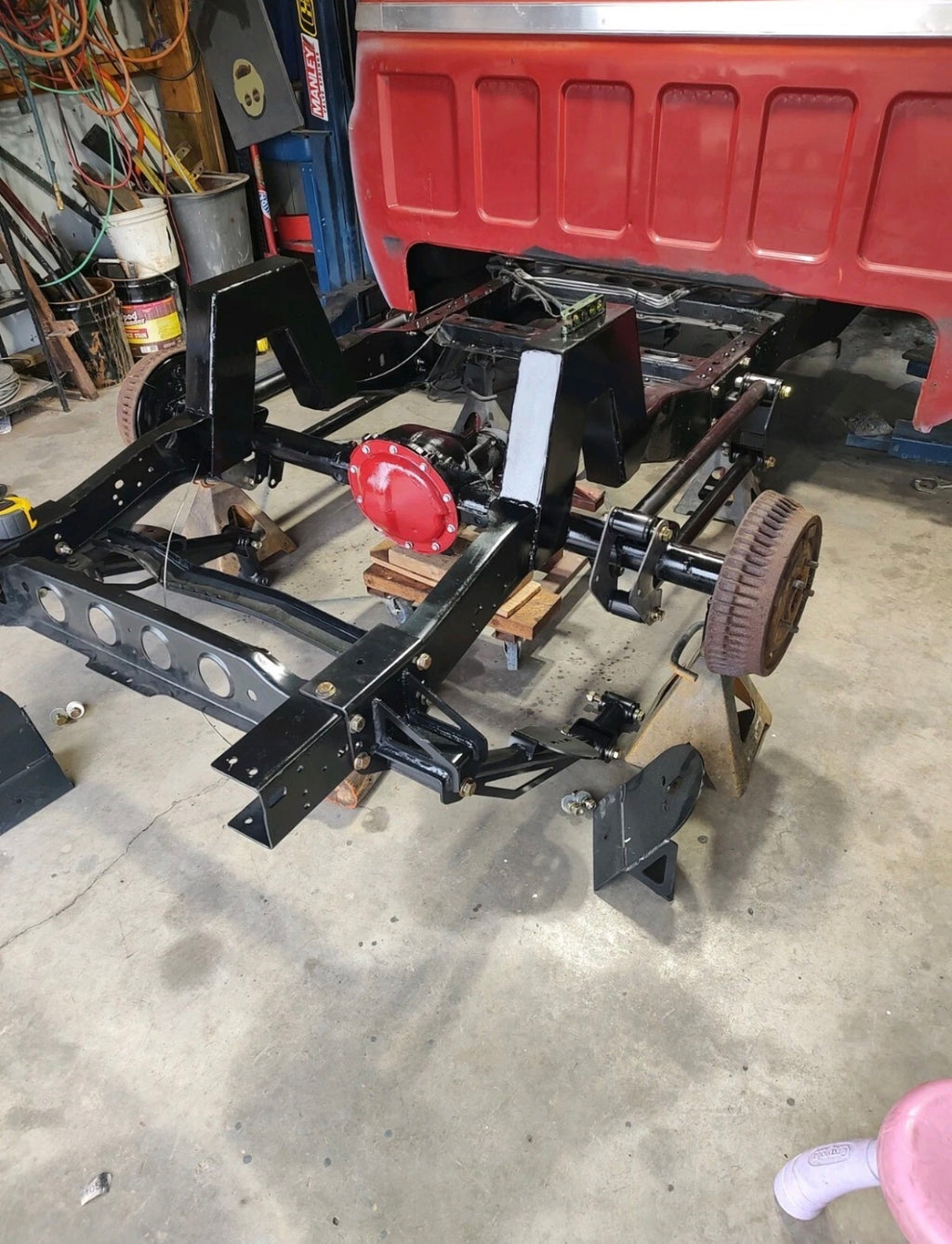

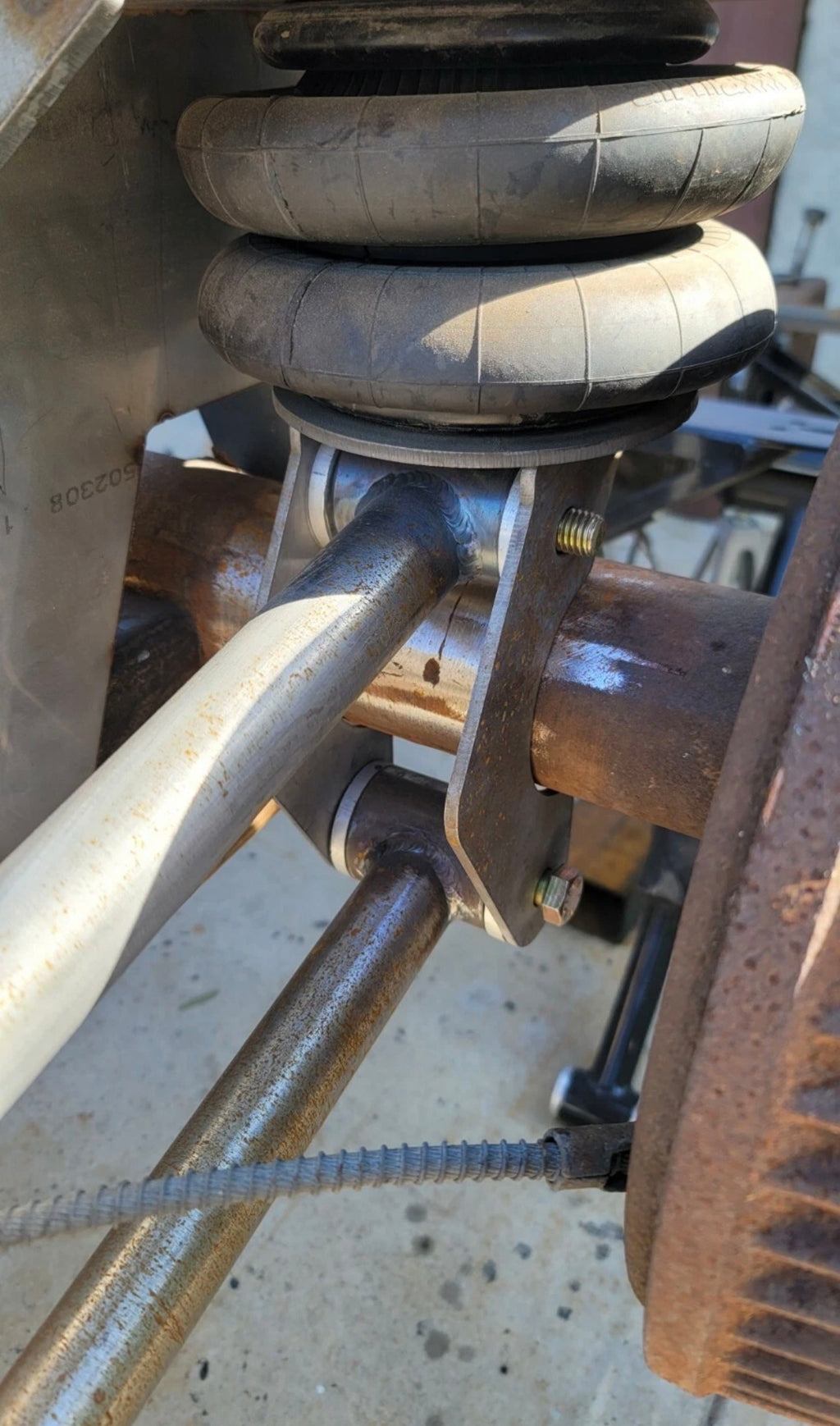

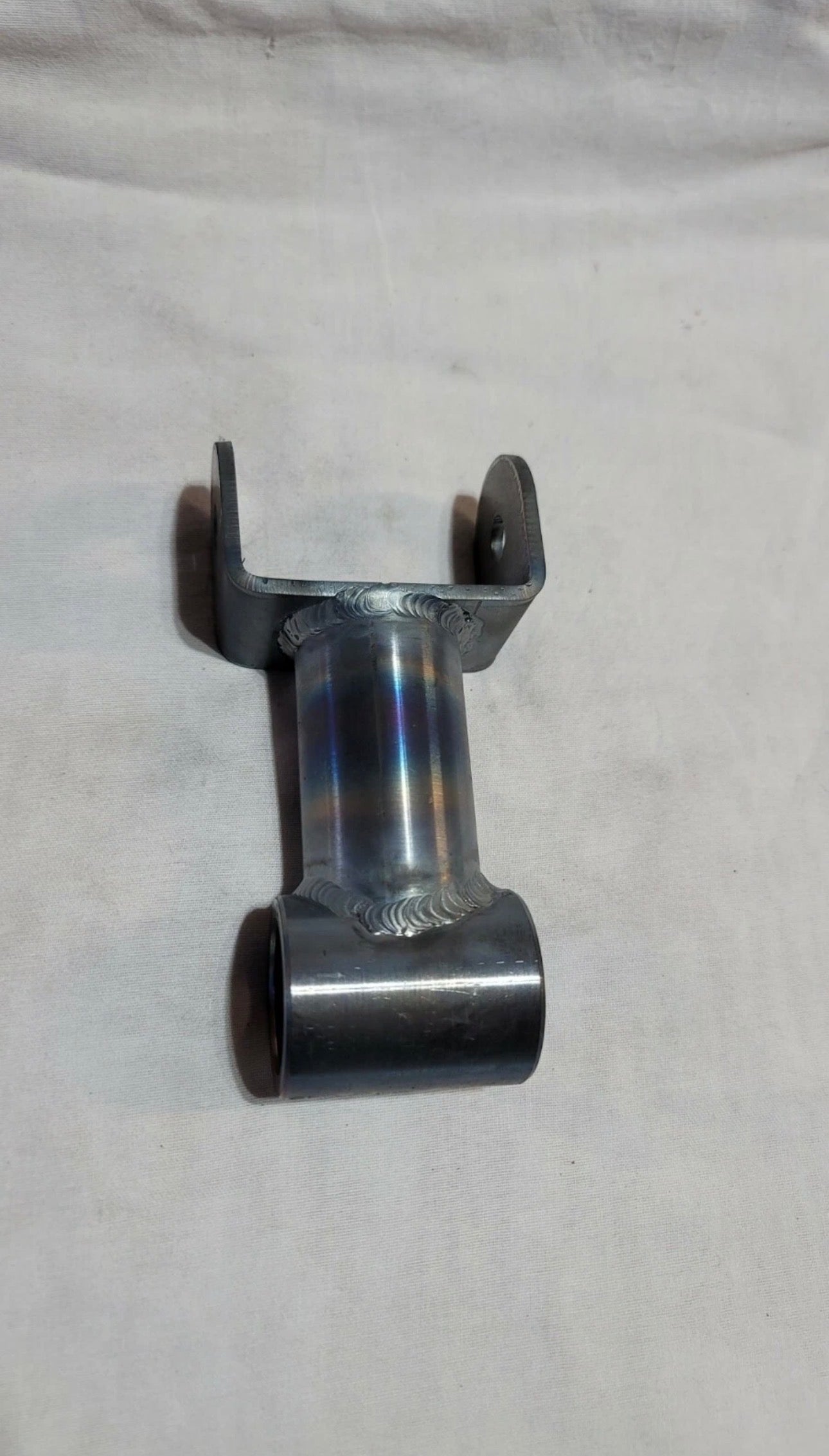

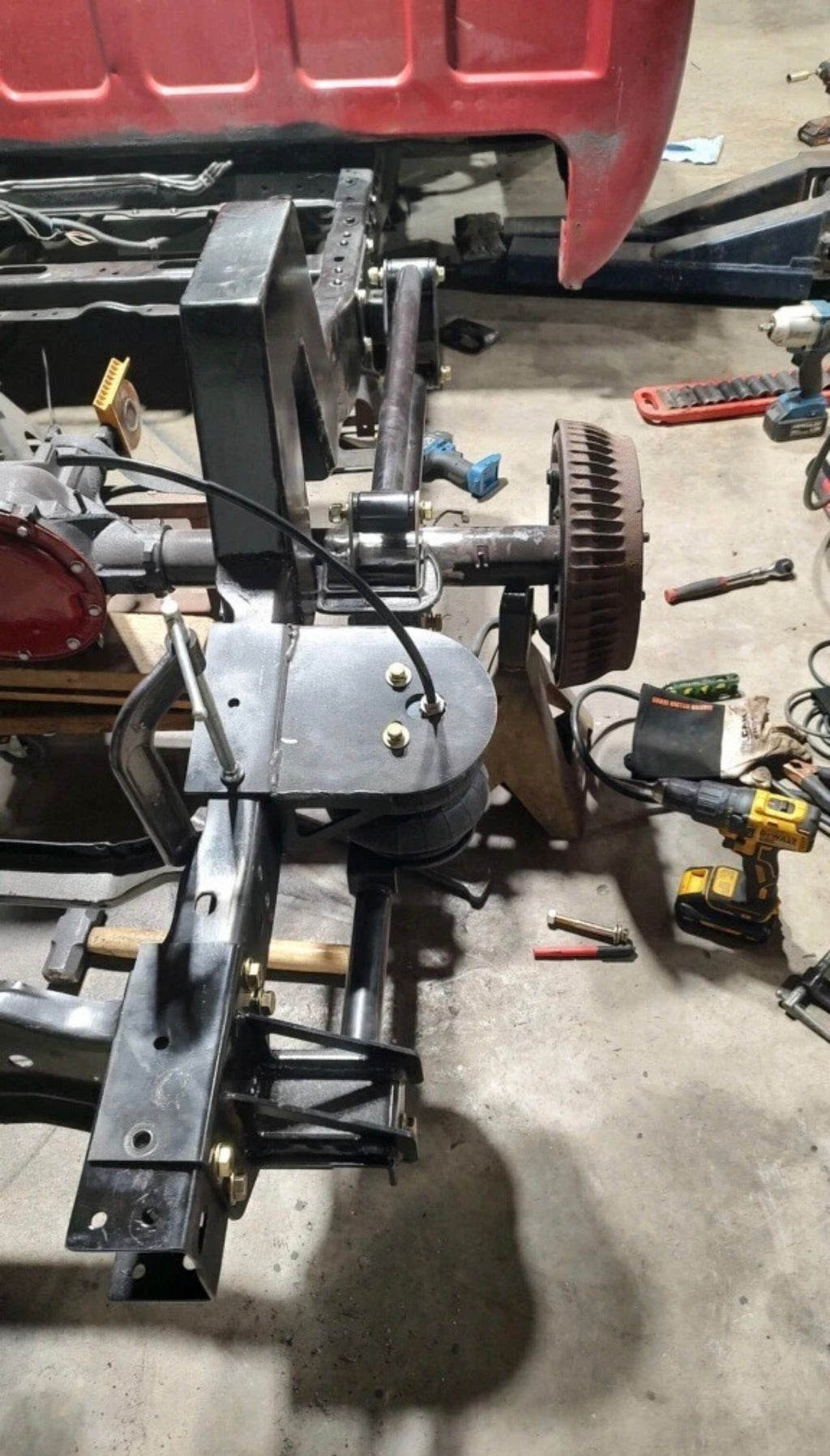

73-87 C10 weld On 4 Link with a cantilever set up for the airbag. All brackets are 3/16". The bars on the 4 link are 1.5"X 1/8 wall thickness tubing. Comes fully welded ready to install to existing mounting holes, you will have to drill out the holes to 1/2" as from factory they are about 7/16".  The axle brackets will be shipped loose for you to weld on your axle. I am also including a watts link.

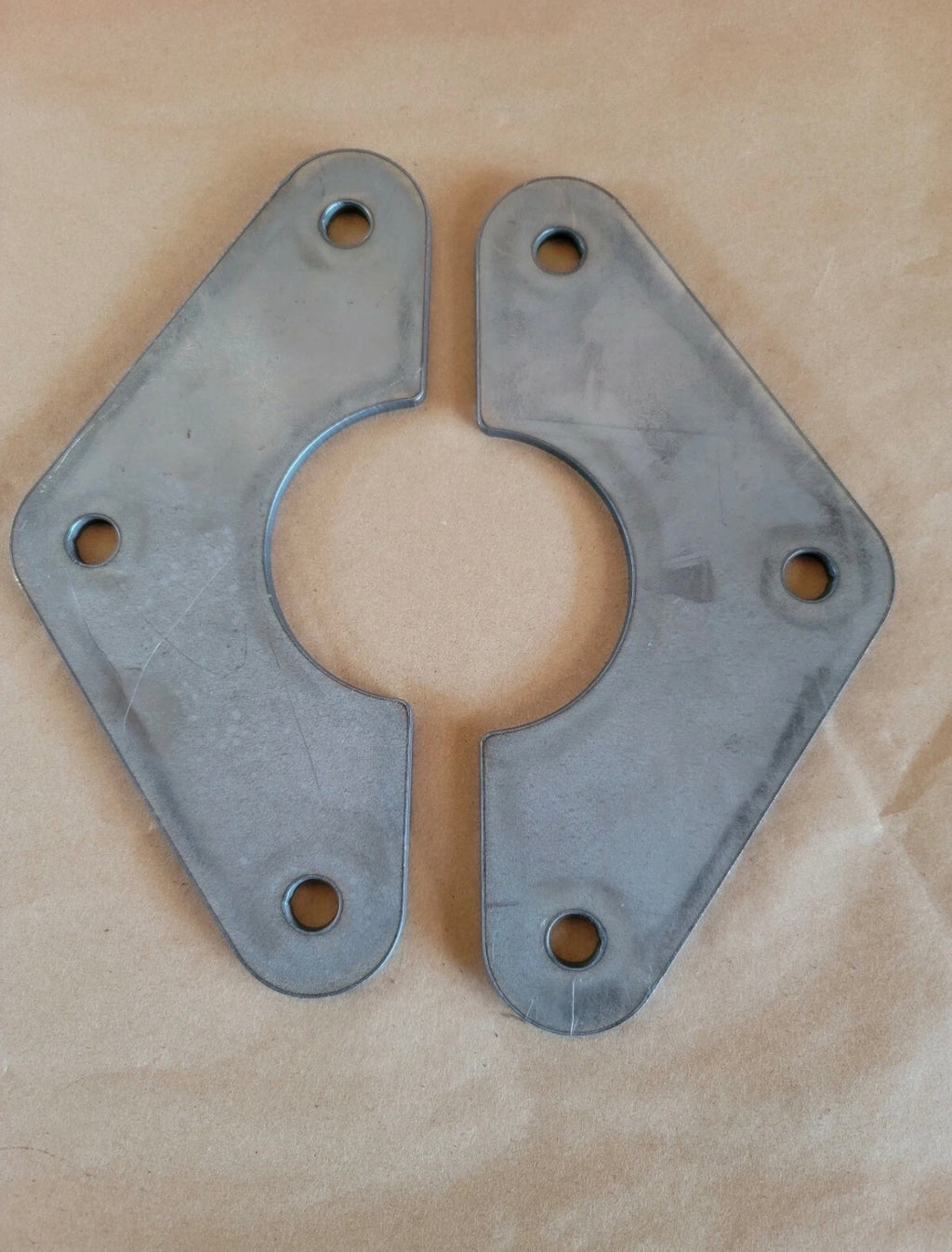

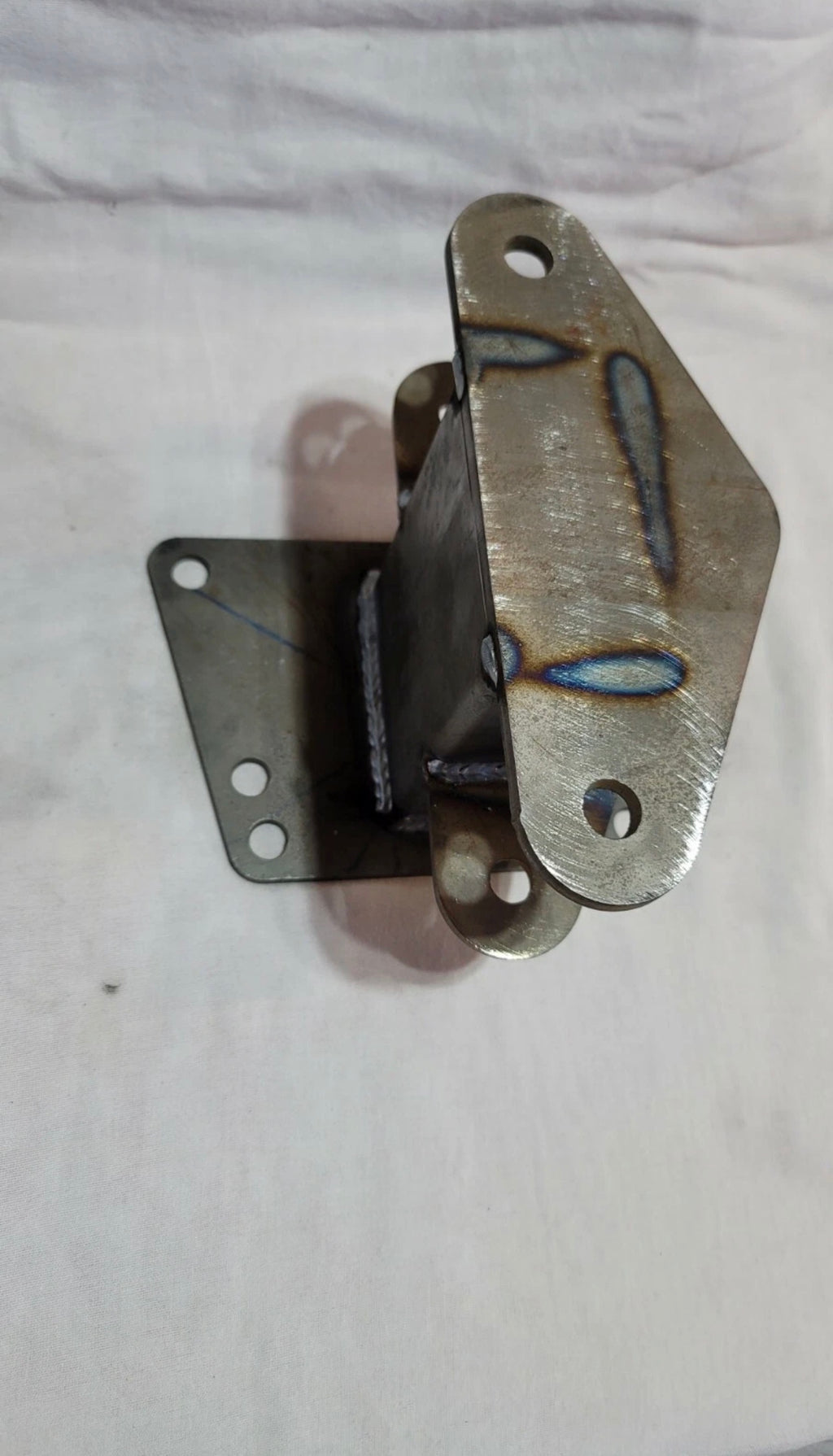

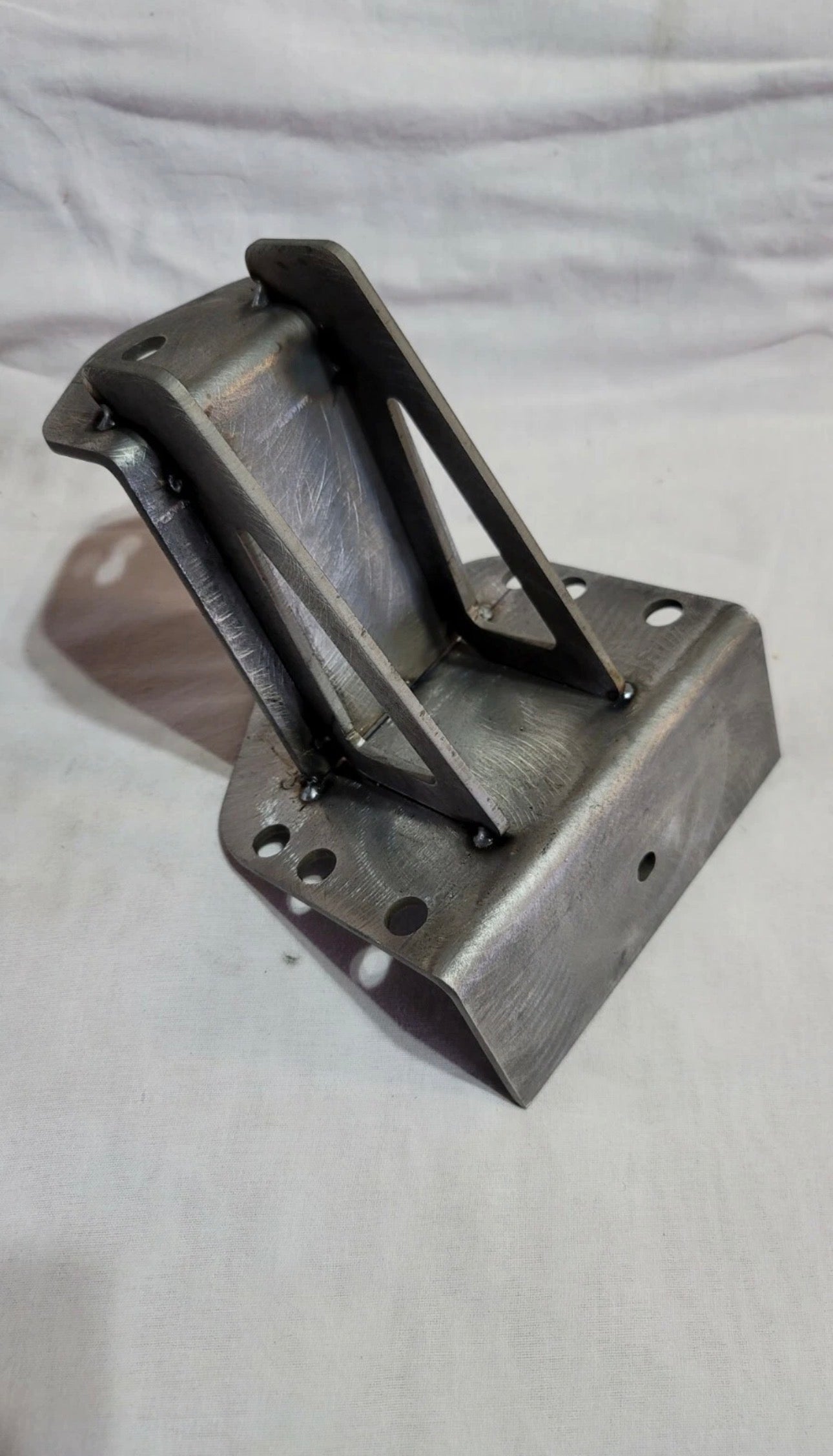

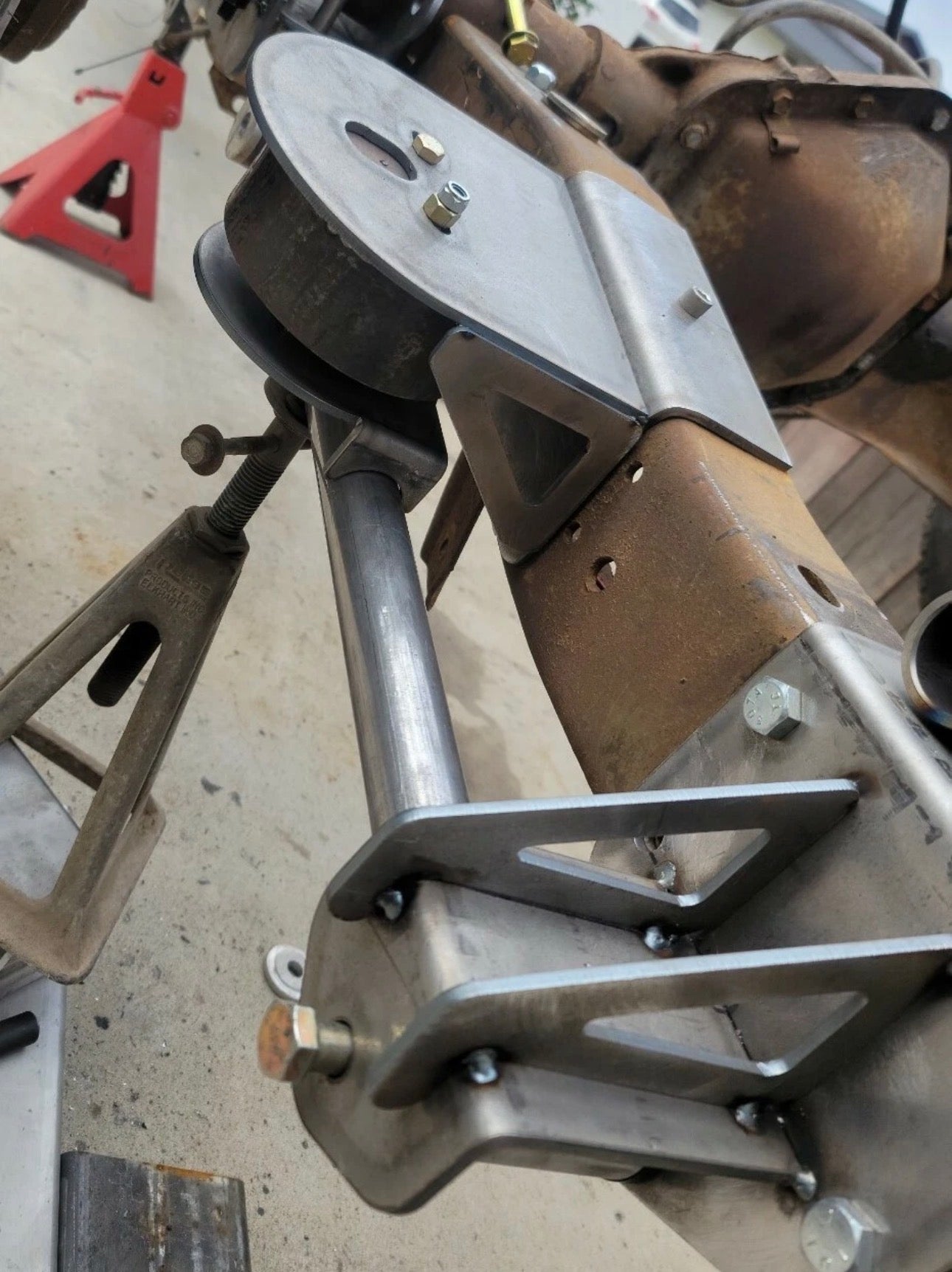

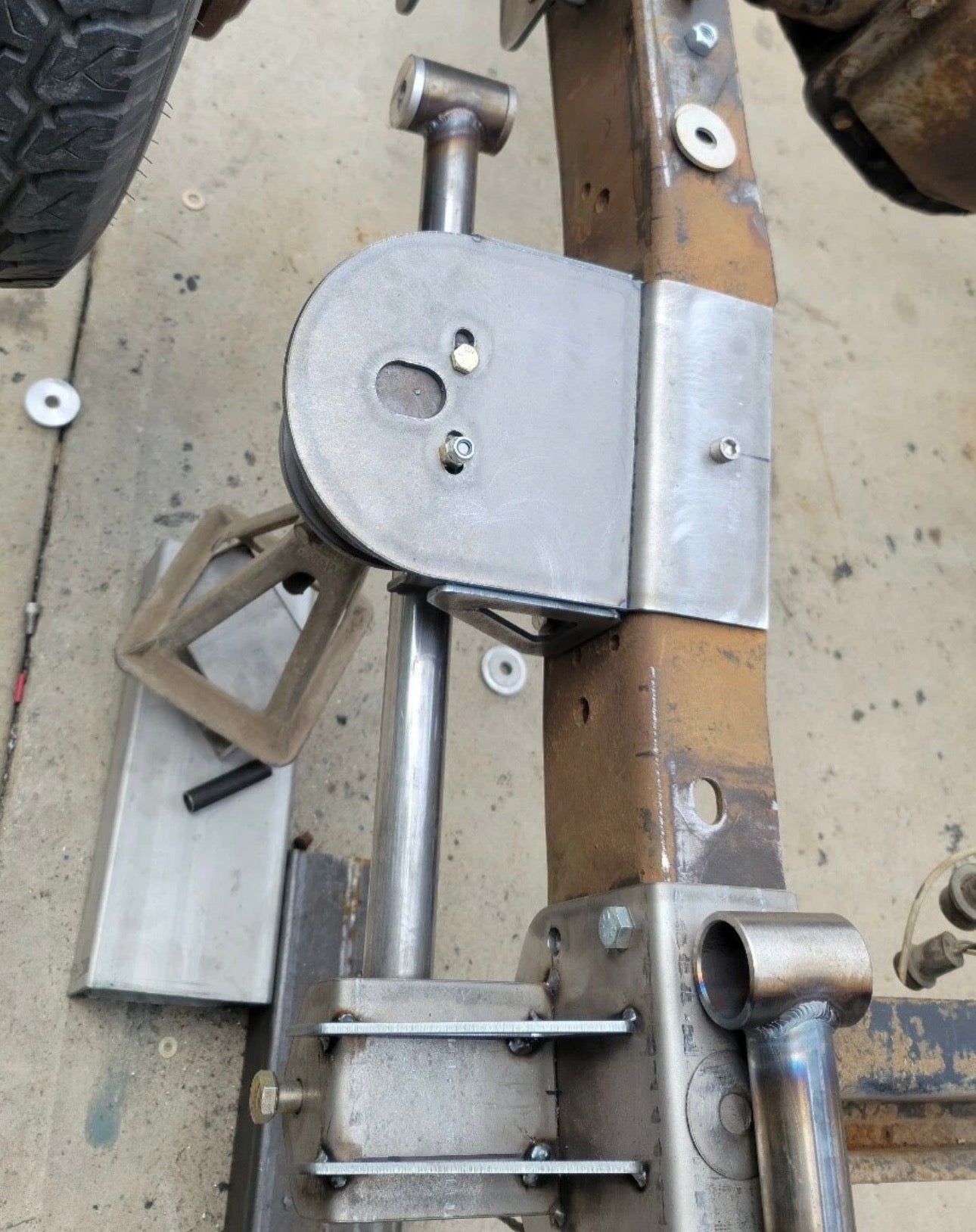

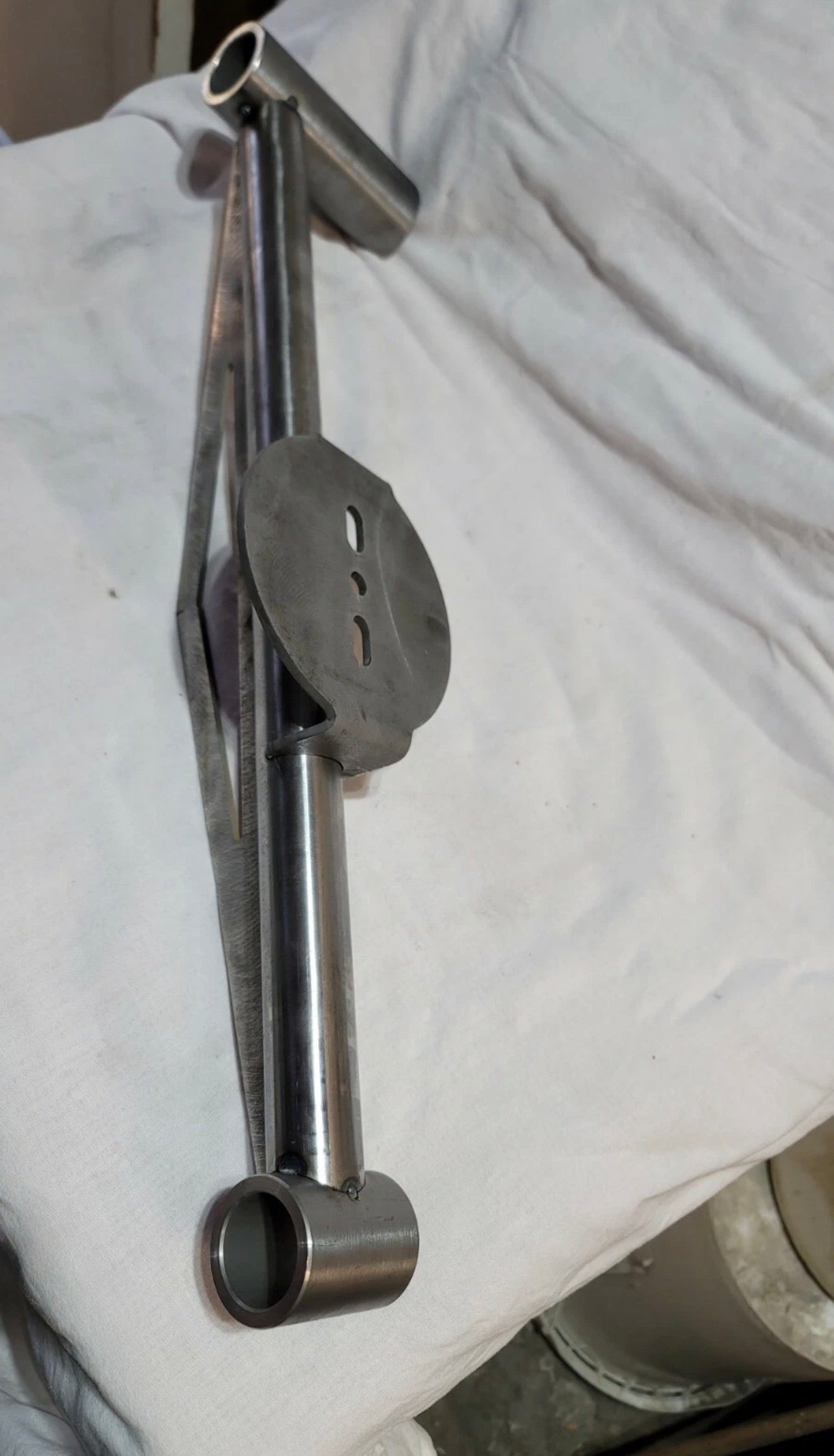

The bars for the cantilever are 3/16" wall tubing. It will come with weld on axle brackets. The front mount and rear cantilever will bolt up to stock hanger mounts. Look at  picture and confirm your hanger has same bolt pattern otherwise it will not bolt up. Made to use a 10 bolt or any axle with 3" axle tubes. If you are wanting to use a different axle, email me so i can confirm i can accomodate that. Will come with all the hardware and bare metal.

Lead time is 5 days since they are all built to order and demand.

If you want to use on single cab c20 email me so I can adjust bolt pattern to bolt up in stock location. Designed to work on trucks using 56" springs. If your truck has 52" ones, confirm that the frame is drilled in the rear to move the spring hanger back 4" for the longer springs. They all should come predrilled but need to double check.
